Flange-mount relay housing level switch set with slosh shield for agitated non-threaded tanks. Polypropylene handles water, water-based coolants, soaps, detergents, and dilute acid/alkaline solutions.
| Quantity | Price |
|---|---|
| 1–29 | $151.54 |
| 30–49 | $133.20 |
| 50–99 | $115.20 |
| 100+ | $56.13 |

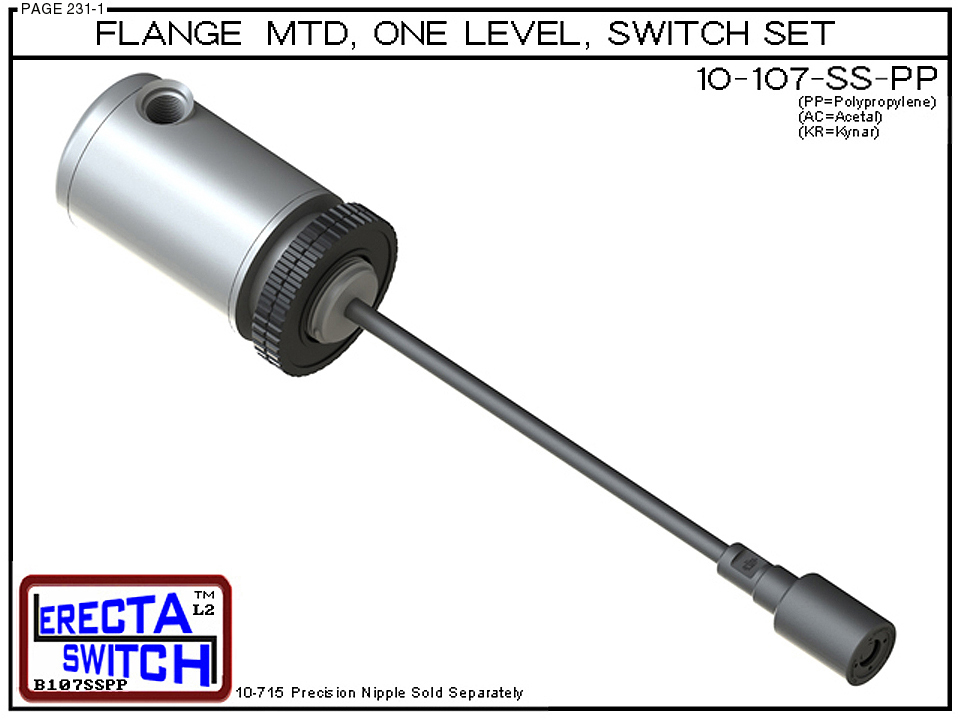

The 10-107-SS is the complete solution for non-threaded tanks that combine three requirements: flange-mount installation, on-board relay integration, and stable switching in agitated or turbulent liquid conditions. The 10-700-SS Slosh Shield is added to the 10-107 assembly, surrounding the switch to dampen surface movement before it reaches the float magnet — preventing the rapid cycling that wave action would otherwise deliver to the relay housed above.
Flange geometry is unchanged: 1.650" to 2.3" (41.91–58.42 mm) hole diameter, maximum wall thickness 0.312" (7.92 mm). The 10-700-FS and 10-700-FN hardware clamps the assembly from outside; no internal tank access required. The 10-700-H1 Relay Housing handles wiring entry directly — no separate liquid-tight connector required or included.
The slosh shield is particularly relevant in OEM equipment where a molded reservoir or fabricated enclosure runs continuous circulation, or in mobile fluid systems where vehicle motion agitates the liquid surface.

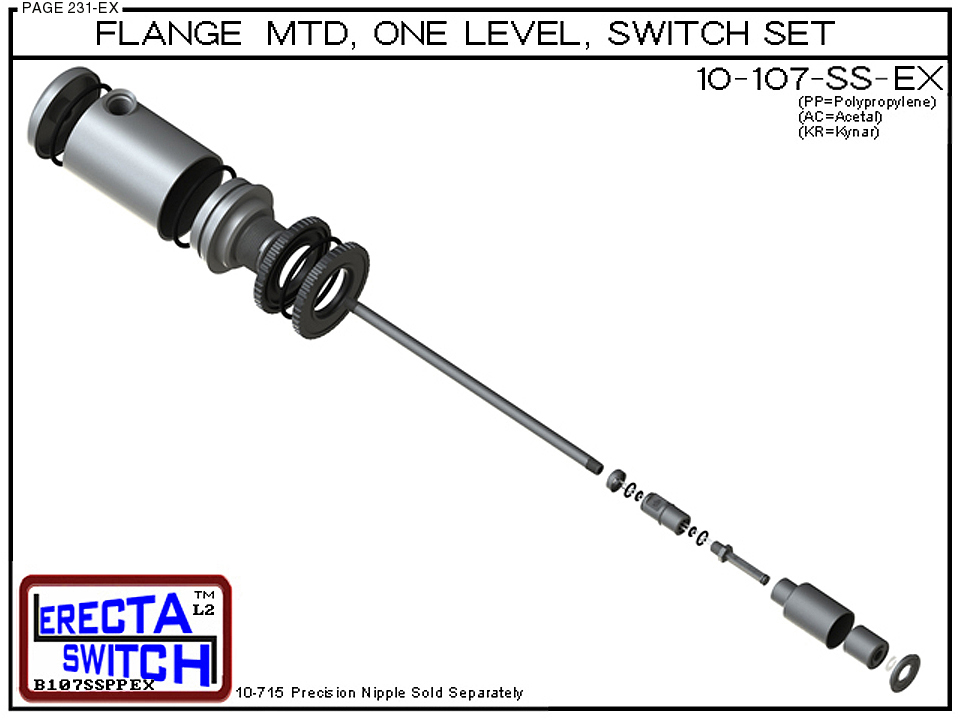

Complete set: 10-782 magnetic reed switch, 10-700-H1 relay housing, 10-700-CS straight connector, 10-700-SS slosh shield, 10-700-FS flange nut w/seal, 10-700-FN flange nut — all polypropylene. Precision nipple (10-715) ordered separately in 1" increments from 1" to 70".

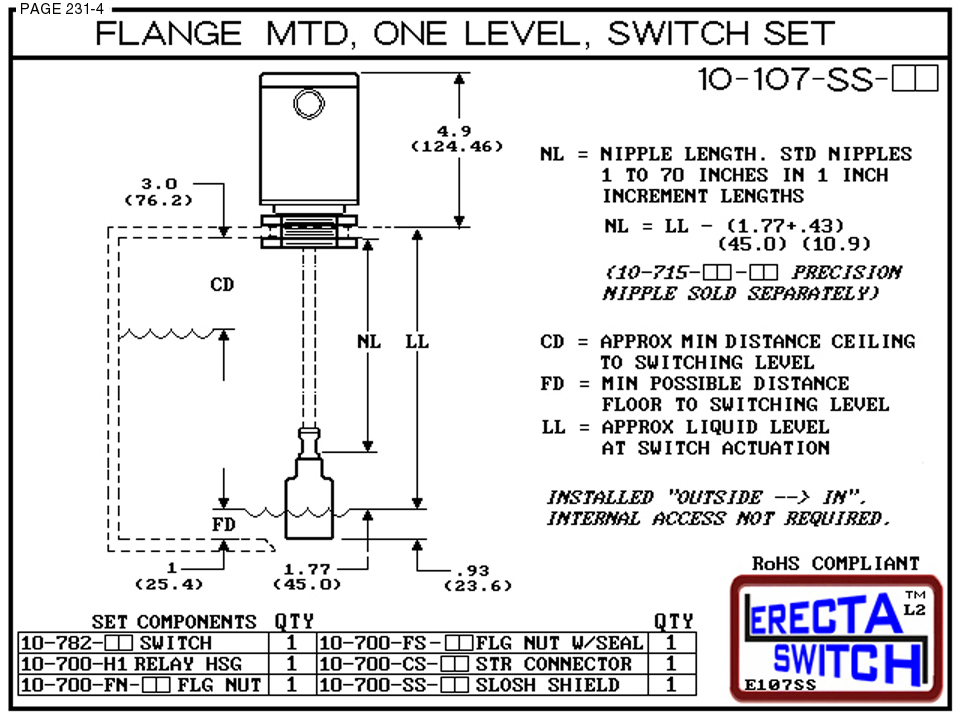

Minimum CD: 3.0" (76.2 mm). NL = LL − 2.20" (LL − 55.9 mm).
| Specification | Value |
|---|---|
| Mount | Flange nut (1.65″–2.3″ dia hole, 0.312″ max wall) |
| Housing | 10-700-H1 Relay Housing (with Slosh Shield) |
| Install | Outside → In (no internal access required) |
| Switch Levels | 1 |
| Switch Element | 10-782 magnetic reed switch |
| Contact Rating | 70 VA, 50W resistive | UL File E70063 |
| NL Formula | NL = LL − 2.20″ (55.9 mm) |
| Nipple Range | 1–70 in, ordered separately (10-715) |
| Compliance | RoHS |
| Material | Polypropylene |
A float level switch like the 10-107-SS-PP is a point-level device: a float rides the liquid and actuates a magnetic reed switch at a set height, giving a simple on/off signal — no power, no firmware, no calibration. "Sensors" usually means continuous measurement (ultrasonic, radar, capacitive). ERECTA SWITCH targets reliable discrete-point control.
The 10-107-SS-PP is used for pump start/stop control, high-level overflow protection, low-level dry-run protection, and tank or reservoir level alarms in OEM equipment. The modular ERECTA SWITCH system is built into laundry, HVAC, water-treatment, hydraulic, and chemical-handling machinery.
Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.
The 10-107-SS-PP is point-level — it provides a discrete on/off signal at a set height. For multiple switch points, use a multi-level extended-stem set (2-, 3-, or 4-level) instead of a single continuous sensor.
ERECTA SWITCH offers vertical top-mount, bulkhead, and extended-stem configurations, plus side-mounted single-point models. The mount style is part of the model number — select the configuration that matches your tank geometry.
Point detection is repeatable and mechanical. The trip height on the 10-107-SS-PP is set by the 10-715 Precision Nipple, ordered separately in 1-inch increments (1″–70″), so you place the switch point exactly where the application needs it.
Our engineering team can verify compatibility with your application and chemistry before you order.
