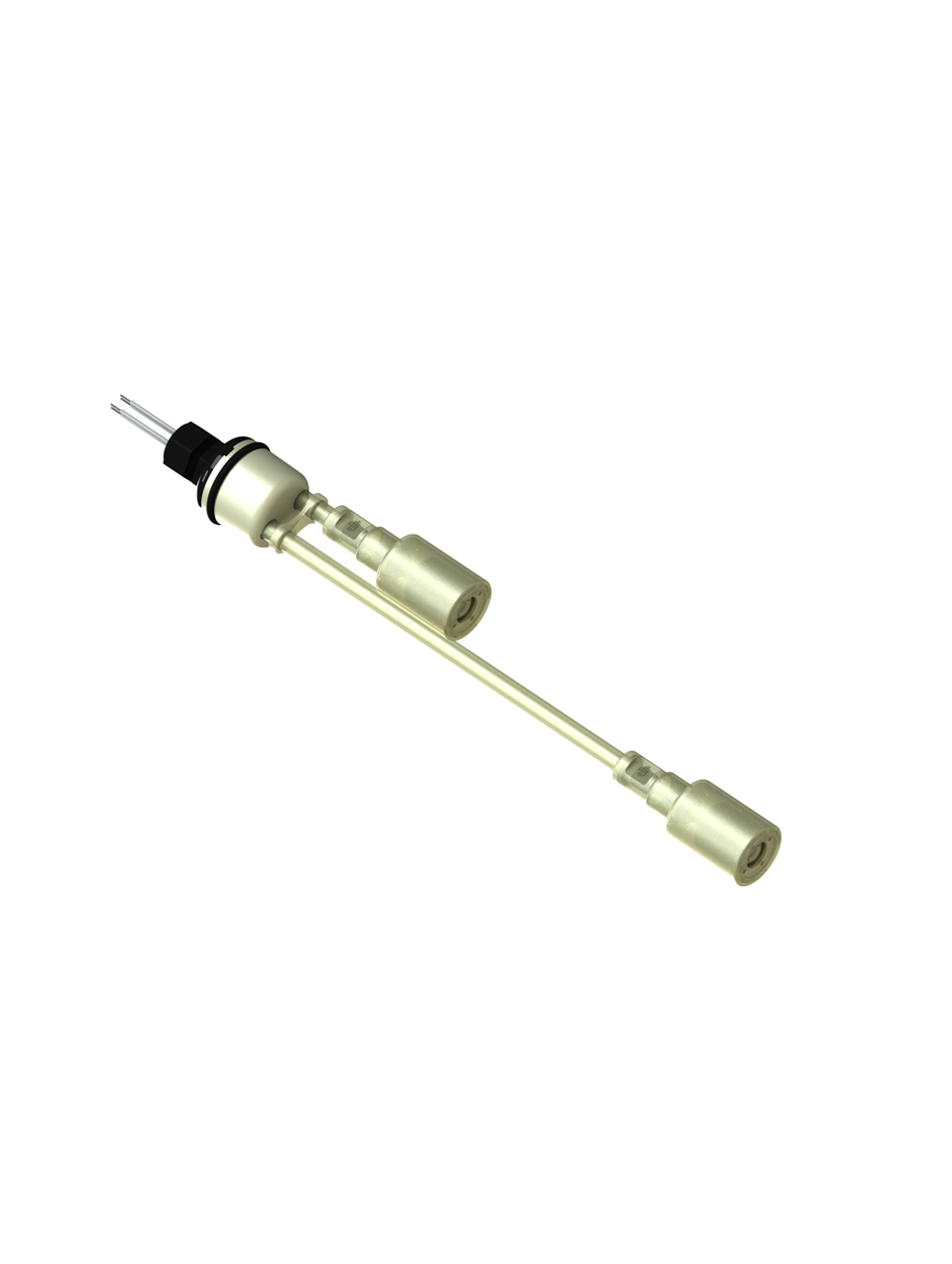

Two-level pop-in switch set with dual slosh shields for agitated plastic containers. Kynar PVDF construction handles aggressive acids, halogens, oxidizers, and ultra-high-purity process fluids.
| Quantity | Price |
|---|---|
| 1–2 | $3,678.57 |
| 3–4 | $3,201.97 |
| 5–9 | $2,761.78 |
| 10–99 | $1,173.50 |

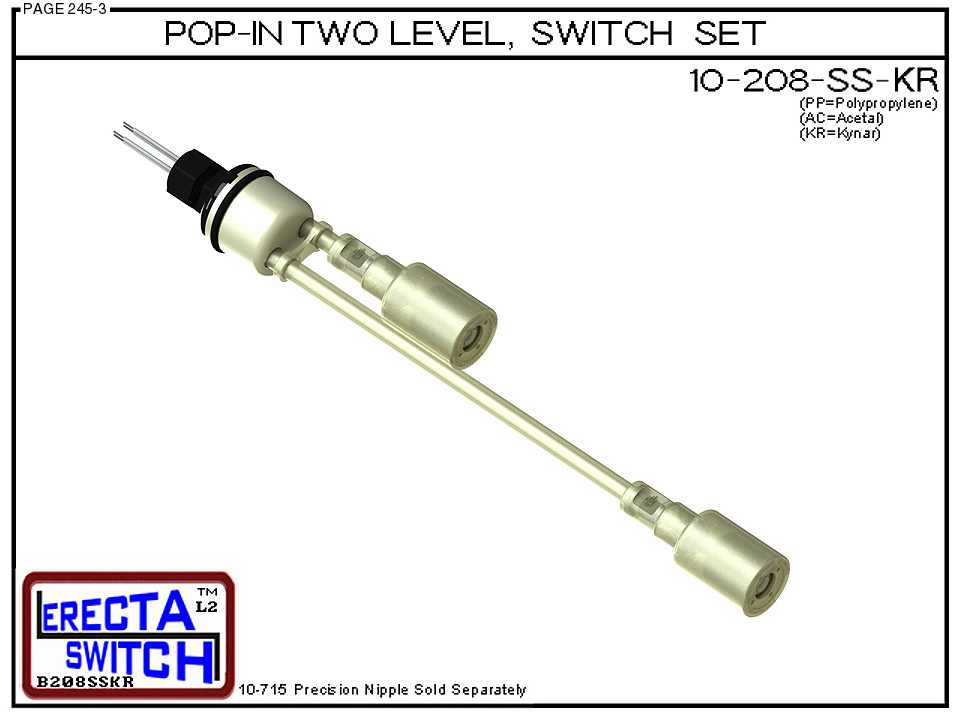

10-208-SS-KR: Pop-In Two-Level Switch Set with Slosh Shields in kynar pvdf. 10-Pack (Case of 10). Kynar PVDF construction handles aggressive acids, halogens, oxidizers, and ultra-high-purity process fluids.
| Specification | Value |
|---|---|
| Mount | Pop-In (1-9/16″ / 39.67 mm hole, plastic lid) |
| Housing | 10-702-R1 Receptacle (with Slosh Shields) |
| Install | Outside → In |
| Lid Thickness | 0.062–0.078″ (plastic, distortion capable) |
| Switch Levels | 2 |
| Switch Element | 10-782 magnetic reed switch |
| Contact Rating | 70 VA, 50W resistive | UL File E70063 |
| NL Formula | NL = LL − 2.62″ (66.59 mm) |
| BD (min) | 1.0″ (25.4 mm) |
| CD (min) | 3.5″ (88.90 mm) |
| Nipple Range | 1–70 in, ordered separately (10-715) |
| Compliance | RoHS |
| Material | Kynar PVDF |
A float level switch like the 10-208-SS-KR is a point-level device: a float rides the liquid and actuates a magnetic reed switch at a set height, giving a simple on/off signal — no power, no firmware, no calibration. "Sensors" usually means continuous measurement (ultrasonic, radar, capacitive). ERECTA SWITCH targets reliable discrete-point control.
The 10-208-SS-KR is used for pump start/stop control, high-level overflow protection, low-level dry-run protection, and tank or reservoir level alarms in OEM equipment. The modular ERECTA SWITCH system is built into laundry, HVAC, water-treatment, hydraulic, and chemical-handling machinery.
Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.
The 10-208-SS-KR is point-level — it provides a discrete on/off signal at a set height. For multiple switch points, use a multi-level extended-stem set (2-, 3-, or 4-level) instead of a single continuous sensor.
ERECTA SWITCH offers vertical top-mount, bulkhead, and extended-stem configurations, plus side-mounted single-point models. The mount style is part of the model number — select the configuration that matches your tank geometry.
Point detection is repeatable and mechanical. The trip height on the 10-208-SS-KR is set by the 10-715 Precision Nipple, ordered separately in 1-inch increments (1″–70″), so you place the switch point exactly where the application needs it.
Our engineering team can verify compatibility with your application and chemistry before you order.
