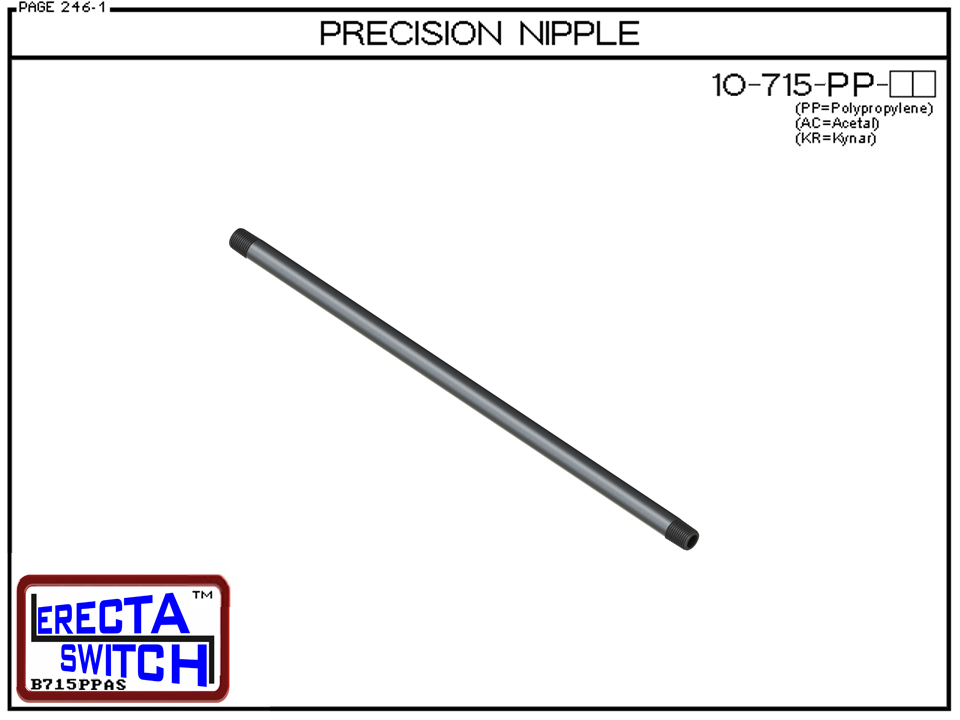

Precision-machined extension tube that sets the exact switching depth for Series 10 extended stem level switches. Available in Polypropylene, Acetal, and Kynar PVDF. Lengths from 1″ to 70″ in 1″ increments.
| Quantity | Price |
|---|---|
| 1–2 | $60.52 |
| 3–4 | $53.47 |
| 5–9 | $46.21 |
| 10–99 | $20.05 |

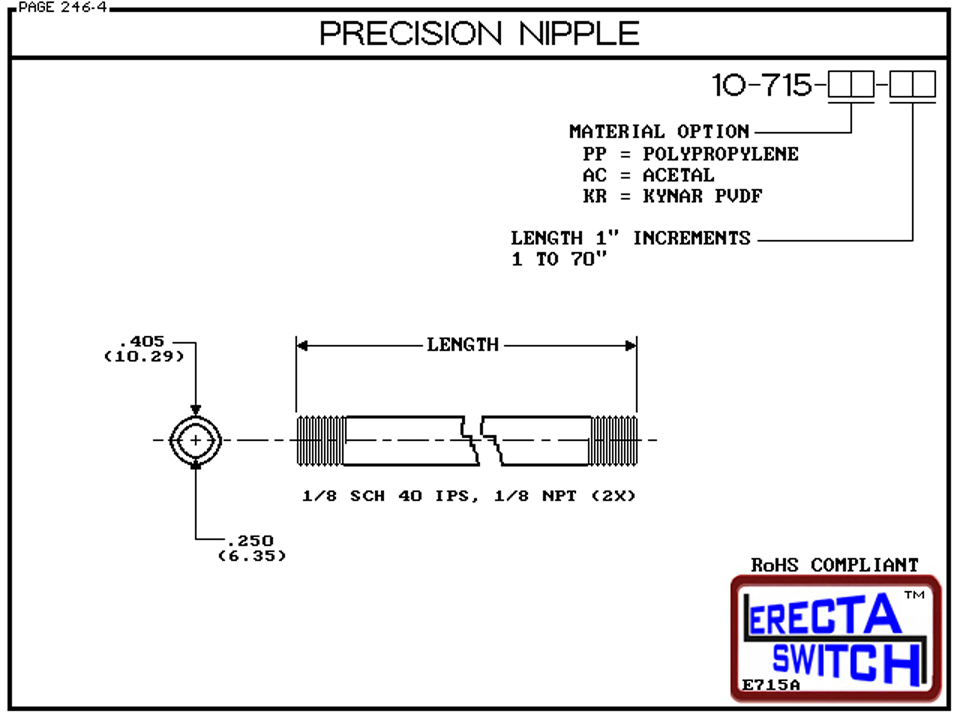

The 10-715 precision nipple is a precision-machined extension tube that sets the exact switching depth for Series 10 extended stem level switches. One nipple is required per switching point. Specify the nipple length at time of order — from 1″ to 70″ in 1″ increments. Available in Polypropylene, Acetal, and Kynar PVDF.
| Specification | Value |
|---|---|
| Type | Precision-machined extension nipple |
| Lengths | 1″ to 70″ in 1″ increments |
| Materials | Polypropylene (PP), Acetal (AC), Kynar PVDF (KR) |
| Thread | Standard ERECTA SWITCH internal thread |
| Function | Sets switching depth for extended stem level switches |
| Max Temperature | PP: 180°F / AC: 200°F / KR: 280°F |
| Material | Polypropylene |
A float level switch like the 10-715-PP is a point-level device: a float rides the liquid and actuates a magnetic reed switch at a set height, giving a simple on/off signal — no power, no firmware, no calibration. "Sensors" usually means continuous measurement (ultrasonic, radar, capacitive). ERECTA SWITCH targets reliable discrete-point control.
The 10-715-PP is used for pump start/stop control, high-level overflow protection, low-level dry-run protection, and tank or reservoir level alarms in OEM equipment. The modular ERECTA SWITCH system is built into laundry, HVAC, water-treatment, hydraulic, and chemical-handling machinery.
Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.
The 10-715-PP is point-level — it provides a discrete on/off signal at a set height. For multiple switch points, use a multi-level extended-stem set (2-, 3-, or 4-level) instead of a single continuous sensor.
ERECTA SWITCH offers vertical top-mount, bulkhead, and extended-stem configurations, plus side-mounted single-point models. The mount style is part of the model number — select the configuration that matches your tank geometry.
Point detection is repeatable and mechanical. The trip height on the 10-715-PP is set by the 10-715 Precision Nipple, ordered separately in 1-inch increments (1″–70″), so you place the switch point exactly where the application needs it.
Our engineering team can verify compatibility with your application and chemistry before you order.
