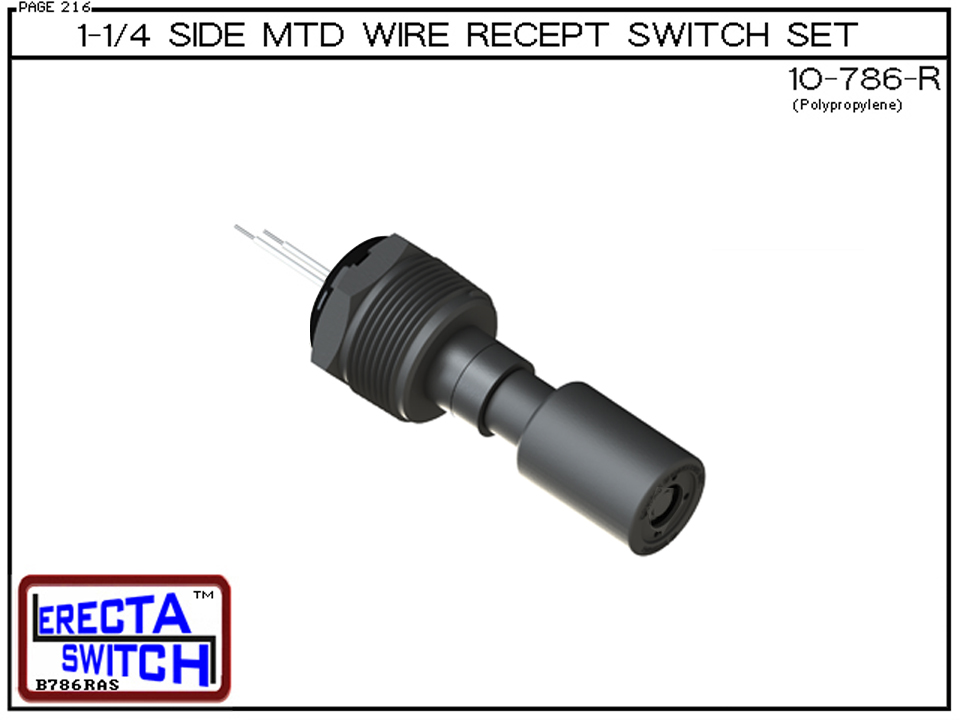

Catalog
Catalog

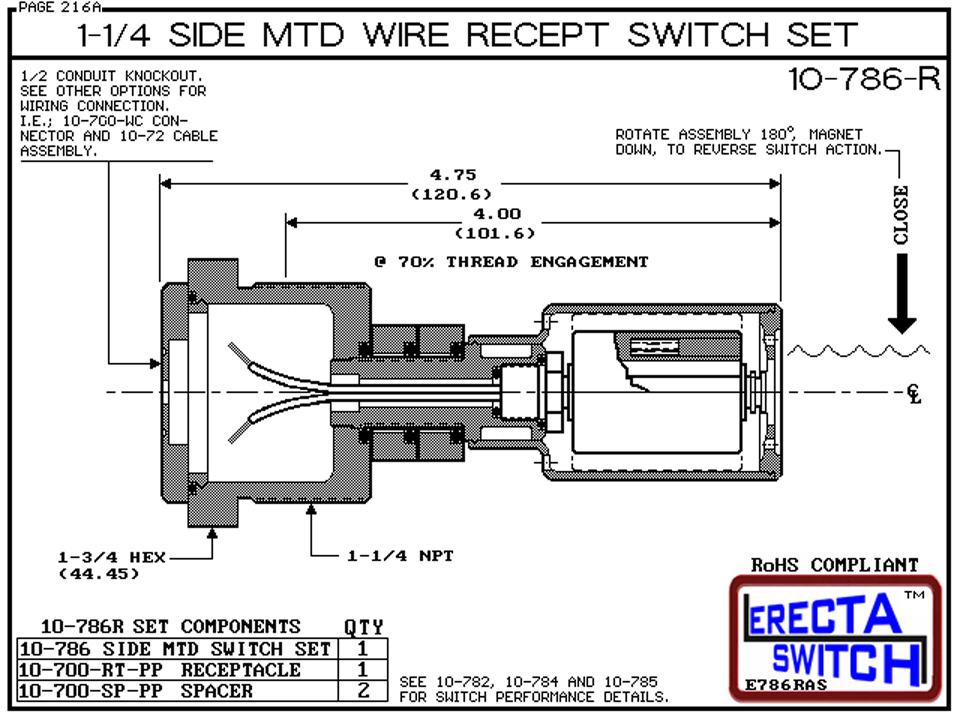

Diagram
Diagram

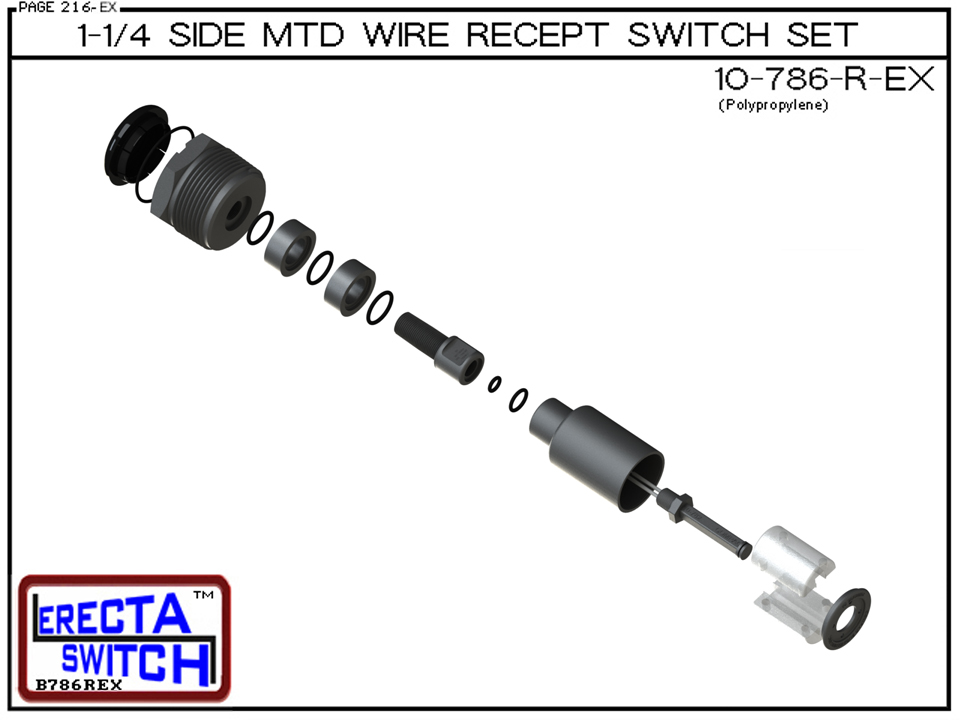

Exploded
Exploded
Overview
Ratings
Install
Schemes
10-786-R Polypropylene OEM 10-Pack Side Mount · Series 10

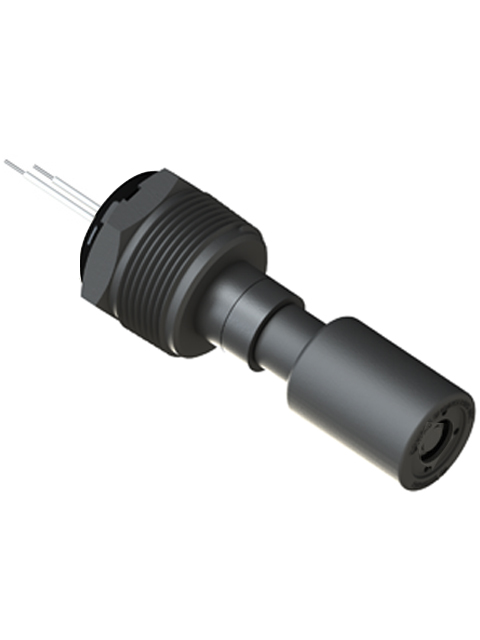

10-786-R-PP Side Mounted Level Switch with Slosh Shield and Weathertight Receptacle — OEM 10 Pack (Polypropylene)

Full-featured weathertight side mount in production packaging.

In Stock — Ships Wednesdays In stock · Ships from Paradise, California
As low as

Call 1-800-828-9044 for pricing.

$264.34/unit at volume
1-2$343.64
3-9$309.28
10+$264.34
Qty
Add to Cart Request OEM Quote Free Evaluation Sample
Also Available
PP · 1-Pack

Product Description

The 10-786-R-PP OEM 10-Pack is production-quantity packaging of Compac's fully-featured side-mounted polypropylene level switch: 1/4" NPT bulkhead, integrated slosh shield, and weathertight wiring receptacle with 1.2" knockout for liquid-tight or DIN connectors. Ten complete assemblies per pack — every part field-serviceable via Compac's ERECTA SWITCH modular parts catalog.

Key Features

Engineered specifications and field-service advantages — not marketing language.

Ten fully-configured assemblies per pack

Bulkhead, slosh shield, split float, jam nut, receptacle, and 24" leads per unit — no production-line kitting required.

Weathertight receptacle with 1.2" knockout

Accepts liquid-tight cord grips or DIN connectors on every unit.

Slosh shield on every unit

Standard in this configuration — no mix-up risk between shielded and unshielded variants on the build sheet.

25% OEM volume discount

Production-run pricing published at the pack level.

ERECTA SWITCH modularity

Every component individually available for long-term service on installed OEM equipment.

Applications

Specific installation scenarios that match the 10-786-R-PP configuration.

Specifications

Model10-786-R-PP
Wetted materialPolypropylene
Chemical compatibilitywater, mild acids, caustics, detergents, and most aqueous solutions
Float operationHorizontal (split float)
Mount thread1/4" NPT via 10-701-BH bulkhead
Max temperature180°F (82°C) continuous
Max pressure100 PSI (6.9 bar)
Electrical rating20 VA, 0.5A @ 120 VAC, 1.0A @ 24 VDC
Lead length24" standard (72" available — contact factory)
Switch elementHermetically sealed reed (10-782-PP)
Pack configurationOEM 10-Pack
Country of manufactureParadise, California, USA

Related Products

10-786-PP 10-Pack
Same minus receptacle
10-787-PP 10-Pack
No shield or receptacle
10-786-R-PP 1-Pack
Individual unit

Not sure which configuration is right?

Compac application engineers help specify the correct level switch for your tank geometry, fluid chemistry, and operating environment — no obligation, no upsell.

Request a Free Evaluation Sample Talk to an Application Engineer
Frequently Asked Questions

Common Questions About This Product

What is the difference between a float level switch and a liquid level sensor?

A float level switch like the 10-786-R is a point-level device: a float rides the liquid and actuates a magnetic reed switch at a set height, giving a simple on/off signal — no power, no firmware, no calibration. "Sensors" usually means continuous measurement (ultrasonic, radar, capacitive). ERECTA SWITCH targets reliable discrete-point control.

What are the typical applications for the 10-786-R?

The 10-786-R is used for pump start/stop control, high-level overflow protection, low-level dry-run protection, and tank or reservoir level alarms in OEM equipment. The modular ERECTA SWITCH system is built into laundry, HVAC, water-treatment, hydraulic, and chemical-handling machinery.

What liquid chemistries is the 10-786-R compatible with?

Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.

Is the 10-786-R a point-level or continuous-level device?

The 10-786-R is point-level — it provides a discrete on/off signal at a set height. For multiple switch points, use a multi-level extended-stem set (2-, 3-, or 4-level) instead of a single continuous sensor.

What mounting options are available for the 10-786-R?

ERECTA SWITCH offers vertical top-mount, bulkhead, and extended-stem configurations, plus side-mounted single-point models. The mount style is part of the model number — select the configuration that matches your tank geometry.

How is the actuation level set on the 10-786-R, and how accurate is it?

Point detection is repeatable and mechanical. The trip height on the 10-786-R is set by the 10-715 Precision Nipple, ordered separately in 1-inch increments (1″–70″), so you place the switch point exactly where the application needs it.
