10-788 Polypropylene OEM 10-Pack Side Mount · Series 10

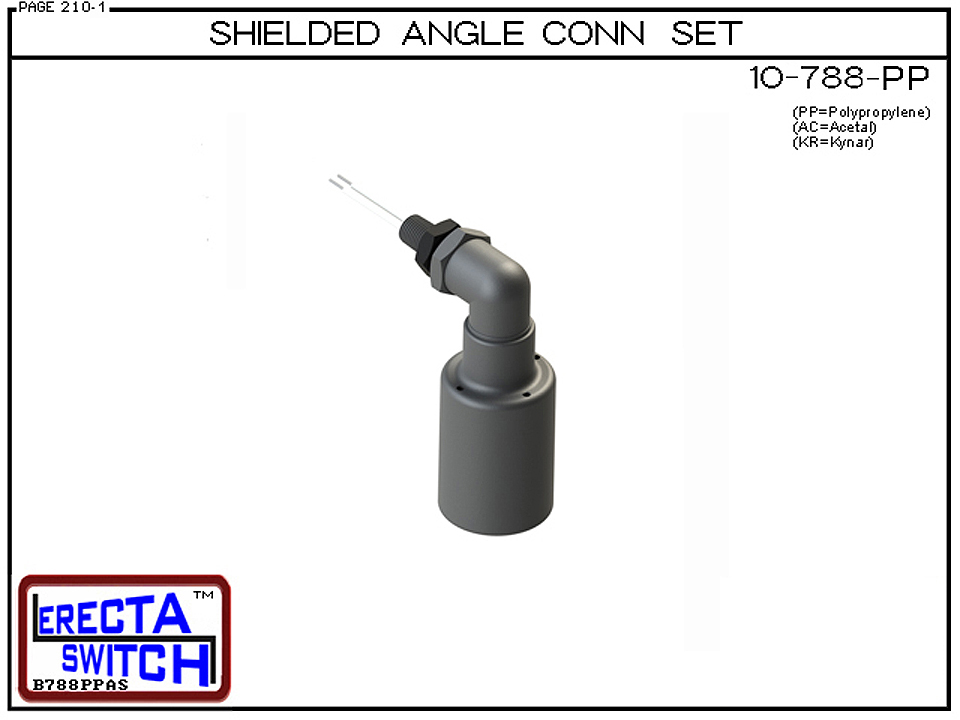

10-788-PP Vertical-Operation Side Mounted Level Switch with Angle Connector — OEM 10 Pack (Polypropylene)

Name: 10-788-PP Vertical-Operation Side Mounted Level Switch with Angle Connector — OEM 10 Pack (Polypropylene)
Brand: ERECTA SWITCH / Compac Engineering
SKU: 10-788-PP-10PK
Price: 159.01 USD
Availability: InStock

Vertical-operation side mount in production packaging — 25% OEM discount.

In Stock — Ships Wednesdays In stock · Ships from Paradise, California

As low as

Call 1-800-828-9044 for pricing.

$159.01/unit at volume

1-2$206.72

3-9$186.04

10+$159.01

Qty

Add to Cart Request OEM Quote Free Evaluation Sample

Also Available

PP · 1-Pack AC · 1-Pack AC · 10-Pack KR · 1-Pack KR · 10-Pack

Product Description

The 10-788-PP OEM 10-Pack is production-quantity packaging of Compac's vertical-operation side-mount polypropylene level switch. Each pack contains ten complete assemblies — 10-782-PP stem, 10-700CA angle connector, 10-700-SS slosh shield, and 24" pigtail leads per unit. This is the configuration for OEM machine builders whose equipment design requires vertical-float reliability but blocks top wire access.

Key Features

Engineered specifications and field-service advantages — not marketing language.

Ten complete vertical-operation assemblies per pack

Pre-kitted with angle connector, slosh shield, float, and leads.

25% OEM volume discount

Production-run pricing.

Vertical-float reliability

Gravity-driven operation — no split-float orientation decision at installation.

Side-wall wire exit on every unit

Angle connector standard — no mix-up between top-exit and side-exit variants on the build sheet.

ERECTA SWITCH modularity

Every part individually stocked for service on installed OEM equipment.

Applications

Specific installation scenarios that match the 10-788-PP configuration.

OEM water treatment equipment builders with side-wall conduit standards
Commercial HVAC condensate monitoring on roof-mount production units
Pressure-washer OEMs requiring vertical-float reliability with side-wall wiring
Aqueous parts-washer OEMs with closed-top tank designs
Commercial laundry equipment builders with side-wall-only wire routing

Specifications

Model	10-788-PP
Wetted material	Polypropylene
Chemical compatibility	water, mild acids, caustics, detergents, and most aqueous solutions
Float operation	Vertical (standard float)
Mount thread	1/8" NPT (via 10-700CA angle connector)
Max temperature	180°F (82°C) continuous
Max pressure	100 PSI (6.9 bar)
Electrical rating	20 VA, 0.5A @ 120 VAC, 1.0A @ 24 VDC
Lead length	24" standard (72" available — contact factory)
Switch element	Hermetically sealed reed (10-782-PP)
Pack configuration	OEM 10-Pack
Country of manufacture	Paradise, California, USA

Frequently Asked Questions

Common Questions About This Product

What is the difference between a float level switch and a liquid level sensor?

A float level switch like the 10-788 is a point-level device: a float rides the liquid and actuates a magnetic reed switch at a set height, giving a simple on/off signal — no power, no firmware, no calibration. "Sensors" usually means continuous measurement (ultrasonic, radar, capacitive). ERECTA SWITCH targets reliable discrete-point control.

What are the typical applications for the 10-788?

The 10-788 is used for pump start/stop control, high-level overflow protection, low-level dry-run protection, and tank or reservoir level alarms in OEM equipment. The modular ERECTA SWITCH system is built into laundry, HVAC, water-treatment, hydraulic, and chemical-handling machinery.

What liquid chemistries is the 10-788 compatible with?

Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.

Is the 10-788 a point-level or continuous-level device?

The 10-788 is point-level — it provides a discrete on/off signal at a set height. For multiple switch points, use a multi-level extended-stem set (2-, 3-, or 4-level) instead of a single continuous sensor.

What mounting options are available for the 10-788?

ERECTA SWITCH offers vertical top-mount, bulkhead, and extended-stem configurations, plus side-mounted single-point models. The mount style is part of the model number — select the configuration that matches your tank geometry.

How is the actuation level set on the 10-788, and how accurate is it?

Point detection is repeatable and mechanical. The trip height on the 10-788 is set by the 10-715 Precision Nipple, ordered separately in 1-inch increments (1″–70″), so you place the switch point exactly where the application needs it.
