10-702-BH — 1/4″ Hex Bulkhead Fitting

SKU: 10-702-BH-PP-1  ·  1-Pack · Polypropylene

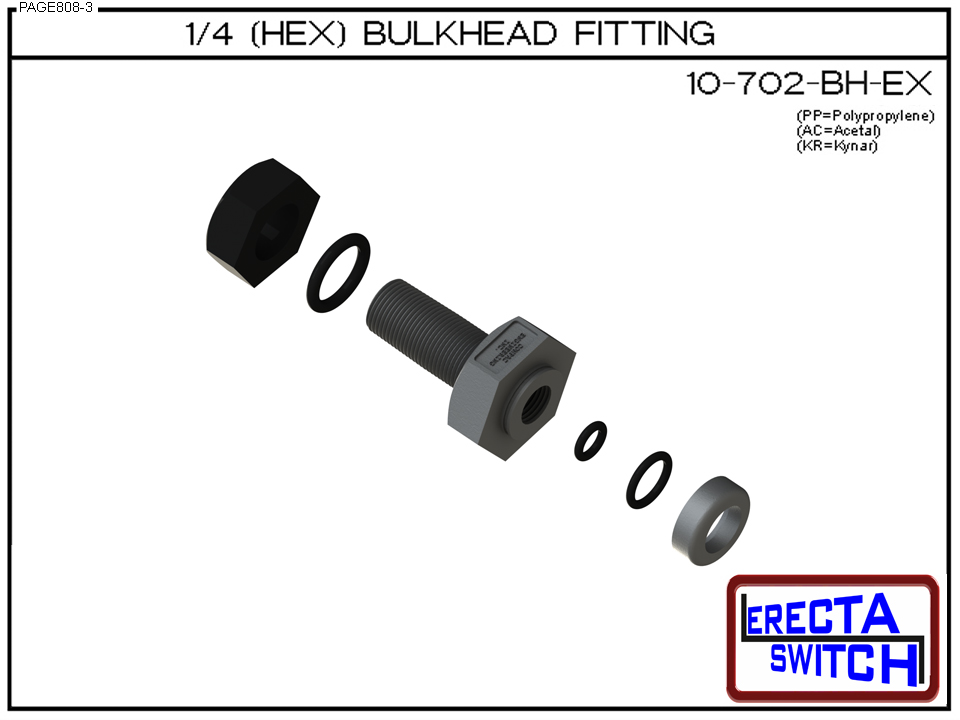

1/4 NPS shank, 1/4 NPT end, 1.0″ hex. The 10-702-BH hex bulkhead fitting provides wrench-flats for positive torque during installation — ideal for high-torque applications or when access is limited to one side of the bulkhead. Optional snap-on cap for use with 1/8 pipe nipples. Bulkhead wall thickness .75″ (19.05 mm) maximum. Bulkhead seal O-ring, jam nut, end seal, and OD seal included.

Material
Pack Size
Net Price — per 1-pack

Call 1-800-828-9044 for pricing.

OEM pricing for quantities above 999 quoted upon request.
Qty
Request OEM Quote Free Evaluation Sample
In stock · Ships Wednesday · Made in Paradise, CA · No minimum order
Other Plastic Fittings
10-700-CA Angle Connector 10-700-FB Fitting Bracket 10-700-WC Strain Relief 10-701-BH Bulkhead Fitting 10-702-BH Hex Bulkhead 10-703-BH 3-Way Fitting
Technical Documents
📄Series 10 Product Family Overview & RatingsPDF 📄Series 10 Application NotesPDF
Key Features

What Makes the 10-702-BH the Right Choice

1.0″ hex for positive wrench engagement
Full hex profile allows secure installation and removal with standard tools. Prevents fitting rotation during connector mating and unmating, reducing stress on bulkhead wall threads.
Optional snap-on cap
End cap snaps onto the 1/8 NPS end for use with 1/8 pipe nipples, extending the fitting’s versatility for nipple-fed installations. Cap adds .14″ to total length (1.7″ with cap).
Greater bulkhead thickness capacity
.75″ (19.05 mm) maximum bulkhead thickness — 50% greater than the 10-701-BH. Suited for thicker tank walls, flanged panels, or installations with additional wall buildup.
Complete sealing hardware
Bulkhead seal O-ring, jam nut, end seal, and OD seal included. Available in PP, Acetal, and PVDF Kynar for full chemical compatibility.
OEM Applications

Where the 10-702-BH Is Specified

Specifications

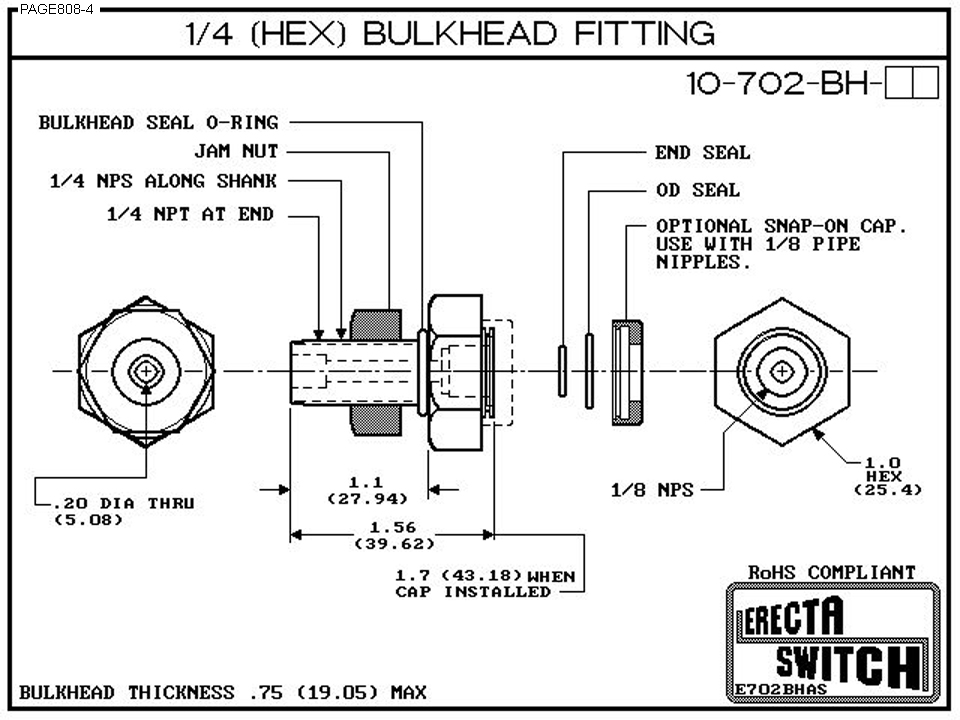

Technical Dimensions — 10-702-BH

Thread — Shank
1/4 NPS
Thread — End
1/4 NPT
Inner Thread
1/8 NPS
Hex Size
1.0″ HEX (25.4 mm)
Bore
0.20″ DIA THRU (5.08 mm)
Body Length
1.1″ (27.94 mm)
Total Length
1.56″ (39.62 mm)
Length w/Cap
1.7″ (43.18 mm)
BH Thickness Max
0.75″ (19.05 mm)
Seals Included
O-ring · Jam nut · End seal · OD seal
Optional Accessory
Snap-on cap (for 1/8 pipe nipples)
Materials
PP · Acetal · PVDF Kynar
Certification
RoHS Compliant
Frequently Asked Questions

Common Questions About This Product

What liquid chemistries is the 10-702-BH compatible with?

Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.

What factors should I consider when choosing the 10-702-BH?

Consider media chemistry (pick PP, AC, or KR), liquid specific gravity, operating temperature and pressure, mounting style, number of switch points, and electrical contact rating. Compac will spec it from your application — request a free evaluation sample.

What makes ERECTA SWITCH different from other level switches?

It is the only fully modular, off-the-shelf liquid level switch system: switch, float, connector, fitting, and nipple are independently field-replaceable and stocked. OEMs configure exactly what they need with no minimums and short lead times. Made in Paradise, California; RoHS compliant.

Can I order individual ERECTA SWITCH replacement components?

Yes. The 10-702-BH is available as an individual, stocked part — no need to replace the entire switch assembly. ERECTA SWITCH is a fully modular system: switch, float, connector, fitting, spacer, and nipple are all orderable separately with no minimums. This reduces repair cost and downtime for OEM field service.

Are ERECTA SWITCH components interchangeable across models?

Yes — modularity is the core of the ERECTA SWITCH system. The 10-702-BH is designed to work across multiple Series 10 configurations. Floats, connectors, spacers, and fittings share standard interfaces, so one stocked component serves many switch assemblies. Check the model number to confirm compatibility.

How do I identify which ERECTA SWITCH component I need?

Each component has a unique model number (e.g., 10-702-BH) that identifies its type, material, and function within the assembly. Contact Compac with your switch model number and the part you need to replace — or request a free evaluation sample to confirm fit before ordering production quantities.
