Three Level Switch Sets — All 10 Configurations
Organized by mount type, then housing style. Each set ships complete with switches, connectors, spacers, and housing. Note: 1-1/4″ NPT mount is not available for three-level sets — the opening is too small to pass three switch assemblies outside-in. Precision nipples (10-715) are required for each switch position and are sold separately.
Precision nipples (10-715) are required and sold separately. Each switch position requires one nipple to set the liquid level at actuation. The upper switch may mount directly to the receptacle without a nipple. Use the Nipple Length Calculator below to determine part numbers before ordering.
-SS models add two items over the base: three slosh shields (10-700-SS) — one per switch position — that stabilize float actuation in turbulent liquid, and a 10-700-WC liquid tight strain relief connector for weatherproof wiring entry. Base models include neither.
Three-level monitoring — high, mid, and low — from a single 2″ NPT bung using the compact receptacle housing. The removable 10-700-AS adapter steps from the receptacle's 1-1/4″ threads to 2″, allowing the three-switch stem assembly to install outside-in without internal tank access. Specify the 10-303-SS when pump cycling or fill turbulence creates float-disrupting agitation.
- Mount2″ NPT adapter (removable)
- HousingReceptacle
- MaterialPP / AC / KR
- Switch Positions3 (high / mid / low)
- Nipple Range1–70″ · sold separately

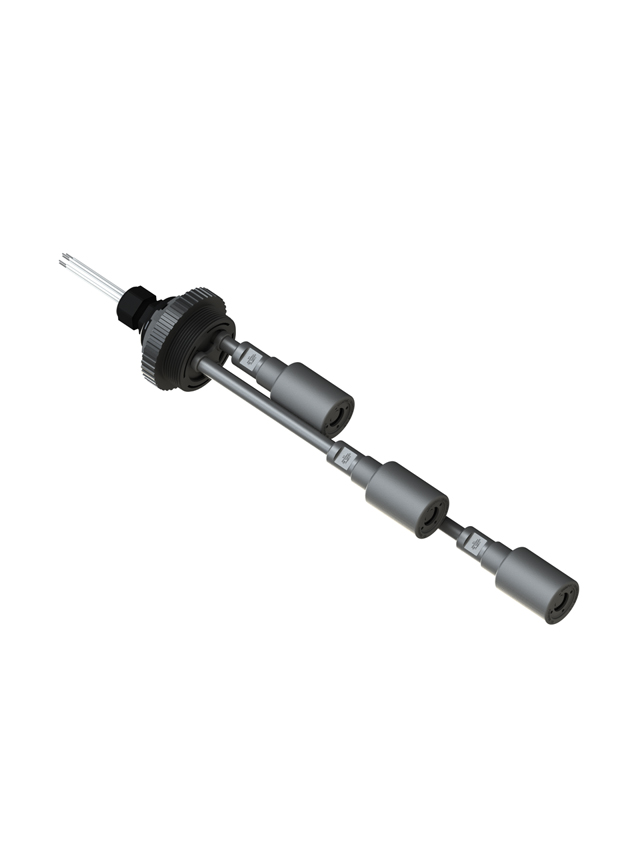

The 10-303 fully accessorized for turbulent bung-mount applications. Three slosh shields stabilize each float position independently — critical in three-level designs where mid-level false triggers can disrupt staged process logic. The 10-700-WC liquid tight connector seals wiring entry against wash-down and chemical exposure. Preferred for commercial laundry systems, chemical dosing circuits, and process tanks with active agitation.
- Mount2″ NPT adapter (removable)
- HousingReceptacle
- Slosh ShieldsIncluded (10-700-SS × 3)
- LT ConnectorIncluded (10-700-WC)

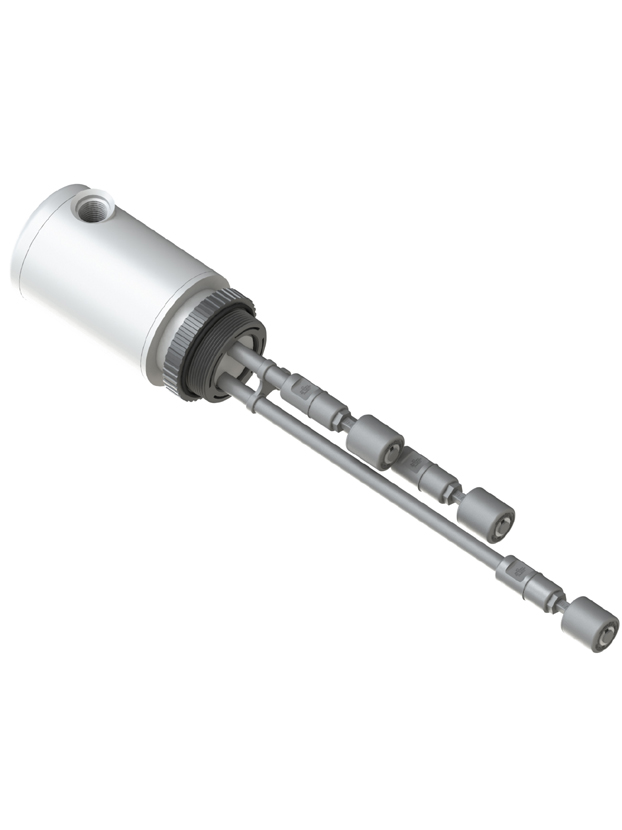

Three-level monitoring for 2″ bung tanks with integrated relay control at the mount point. The FR ABS relay housing consolidates three switching points, relay logic, and conduit attachment into one bung-mount assembly — all installed outside-in. Choose the 10-306 when your three-level design routes relay control through the switch housing rather than an external panel.
- Mount2″ NPT adapter (removable)
- HousingFR ABS Relay Housing
- MaterialPP / AC / KR
- Switch Positions3 (high / mid / low)
- Nipple Range1–70″ · sold separately

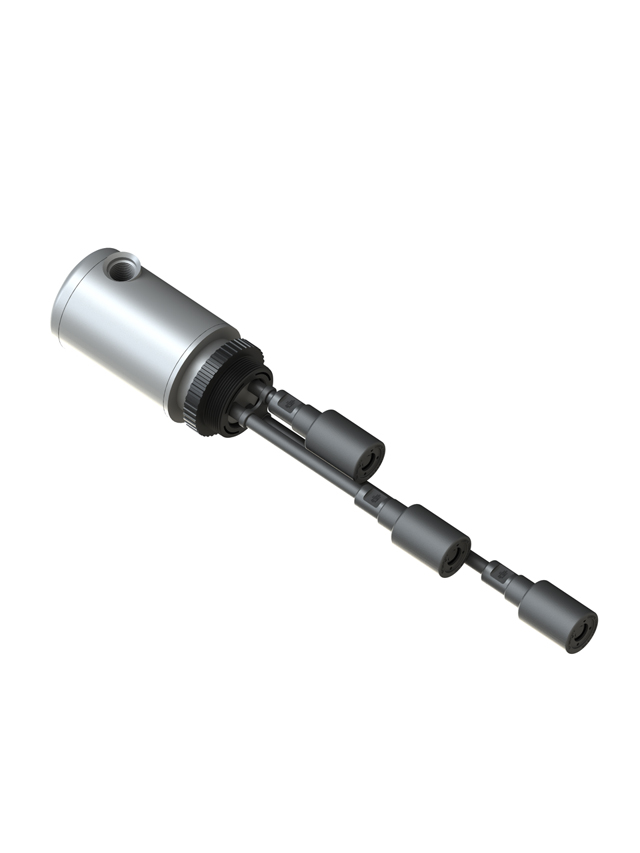

The most complete three-level control assembly for 2″ bung applications. Relay housing, slosh shields at all three positions, and liquid tight connector — mounting, relay logic, float stabilization, and weatherproof wiring from one outside-in installation. The correct specification when agitated bung-mount applications require both relay control at the tank and reliable mid-level switching.
- Mount2″ NPT adapter (removable)
- HousingFR ABS Relay Housing
- Slosh ShieldsIncluded (10-700-SS × 3)
- LT ConnectorIncluded (10-700-WC)

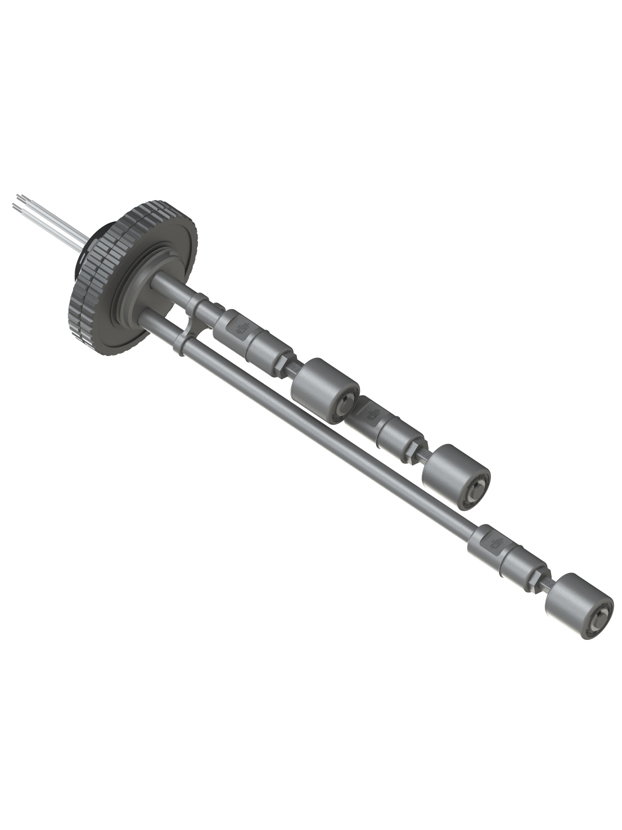

Three-level monitoring through a smooth-cut hole in a flat tank wall or lid — no NPT port required — with the compact receptacle housing. Cut a 1.65–2.3″ hole; the outer flange nut with dual O-ring seal clamps from outside, inner nut from inside. Three switch positions cover high, mid, and low level in a single flange penetration. Flange nuts available in PP, Acetal, or Kynar.
- MountFlange nut (2 nuts + 2 O-rings)
- HousingReceptacle
- Hole Size1.65–2.3″ dia.
- Nut MaterialPP / AC / KR
- AccessInternal req'd (bottom nut)

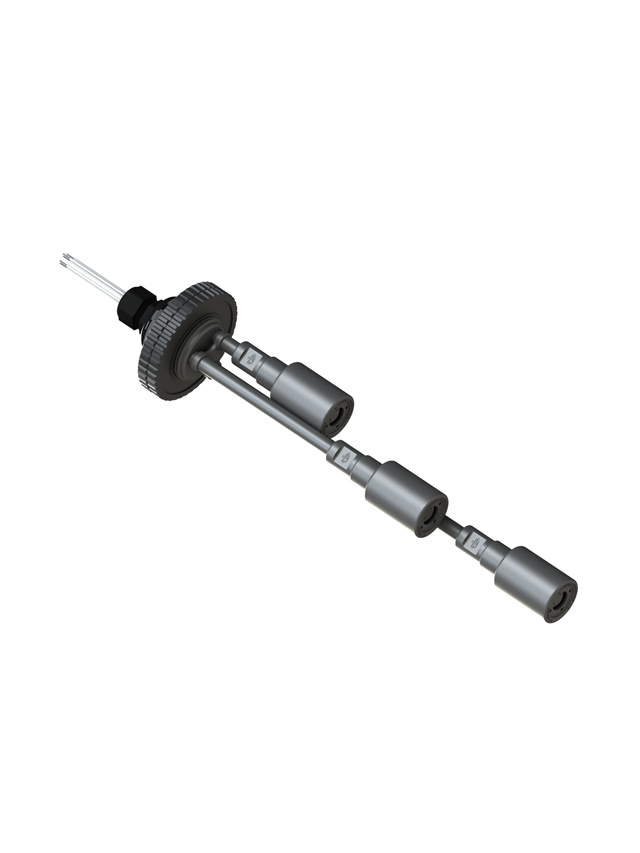

The 10-304 fully accessorized for turbulent or chemically aggressive flange-mount applications. Three slosh shields stabilize every switch position — particularly valuable for mid-level control where false triggers from agitation disrupt staged process sequences. With Kynar flange nuts specified, this delivers the highest chemical resistance in the receptacle flange group — semiconductor wet processing, aggressive acid, and high-purity service.
- MountFlange nut (2 nuts + 2 O-rings)
- HousingReceptacle
- Slosh ShieldsIncluded (10-700-SS × 3)
- LT ConnectorIncluded (10-700-WC)
- Nut MaterialPP / AC / KR

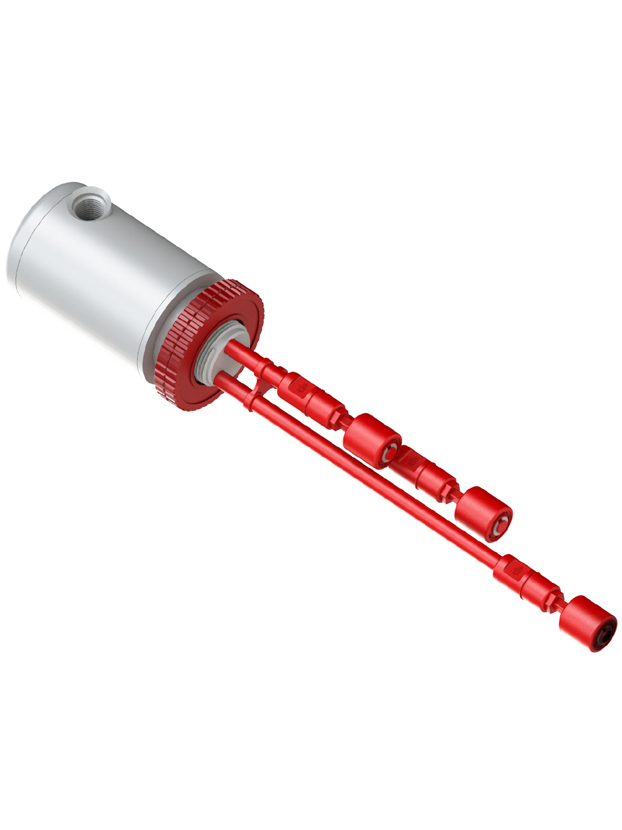

Three-level flange-nut monitoring with the full FR ABS relay housing. Cut a 1.65–2.3″ hole; outer flange nut with dual O-ring seal clamps from outside, inner nut secures from inside. The relay housing adds an integrated relay compartment and cam lock conduit base directly above the flange — switch, relay logic, and conduit attachment in one flat-wall installation. Internal access required for bottom nut.
- MountFlange nut (2 nuts + 2 O-rings)
- HousingFR ABS Relay Housing
- Hole Size1.65–2.3″ dia.
- Nut MaterialPP / AC / KR
- AccessInternal req'd (bottom nut)

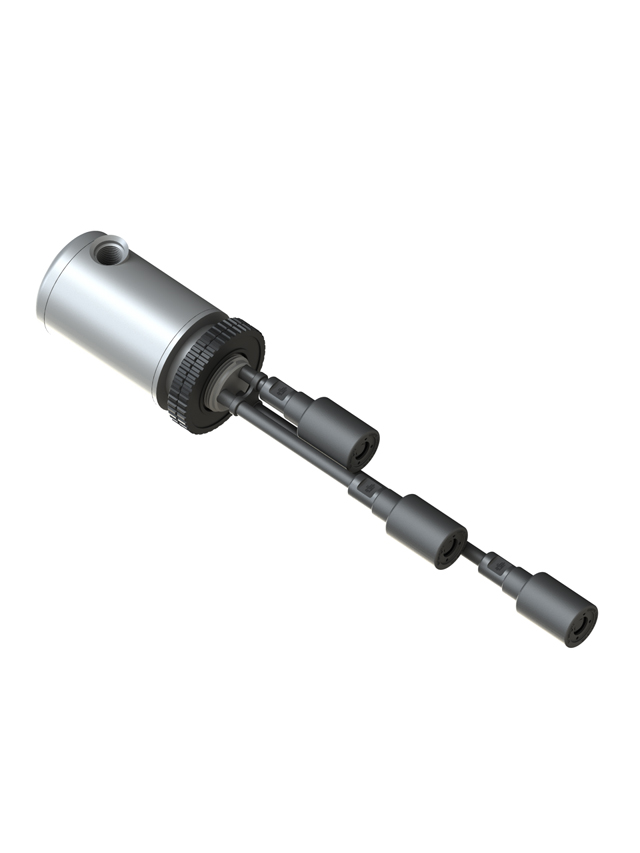

The most complete three-level flange-mount assembly in Series 10. Relay housing, dual O-ring flange seal, three slosh shields, and liquid tight connector in one unit. With Kynar flange nuts specified, this handles the most demanding chemical environments — semiconductor process chemistry, concentrated acids, strong oxidizers — while delivering reliable three-point level control with on-board relay logic.
- MountFlange nut (2 nuts + 2 O-rings)
- HousingFR ABS Relay Housing
- Slosh ShieldsIncluded (10-700-SS × 3)
- LT ConnectorIncluded (10-700-WC)
- Nut MaterialPP / AC / KR

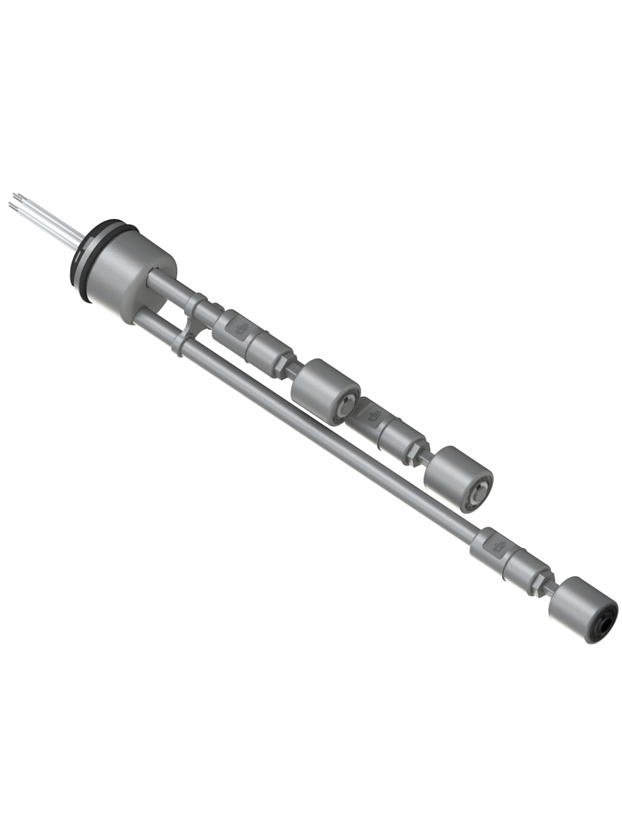

Three-level monitoring for thin-wall plastic tanks and lids — outside-in, no hardware, no internal access. Cut or punch a 1-9/16″ hole; the 10-702-R1 pop-in receptacle snaps in and the O-ring locks for a liquid-tight seal. Wall must be plastic, 0.062–0.078″ thick. Three switch positions cover high, mid, and low from one penetration point — the most efficient three-level installation available for injection-molded enclosures and polyethylene reservoirs.
- MountPop-in snap lock
- HousingPop-In Receptacle (10-702-R1)
- Hole Size1-9/16″ (39.67mm)
- Wall Thickness0.062–0.078″ plastic only
- Switch Positions3 (high / mid / low)

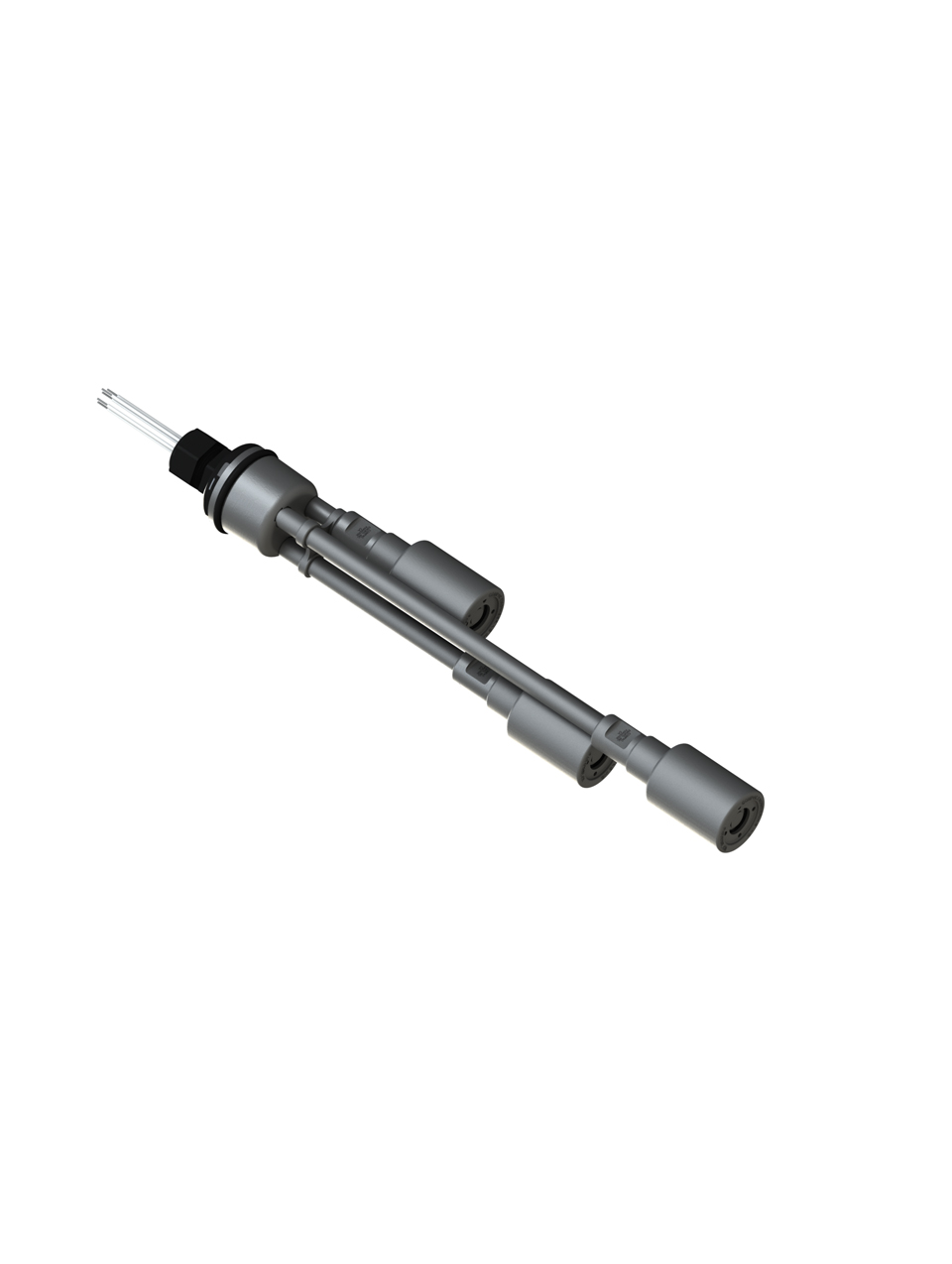

The 10-308 with three slosh shields and liquid tight connector for plastic tank applications where surface agitation is a factor. All three float positions are stabilized — outside-in snap installation retained. Preferred for thin-wall polyethylene reservoirs in wash systems, chemical dispensing equipment, and HVAC condensate units where pump cycling creates turbulence that would otherwise cause mid-level nuisance trips.
- MountPop-in snap lock
- Hole Size1-9/16″ (39.67mm)
- Slosh ShieldsIncluded (10-700-SS × 3)
- LT ConnectorIncluded (10-700-WC)
Precision Nipple Length Calculator — Three Level Set
Each of the three switch positions requires one 10-715 precision nipple. The upper switch may also mount directly to the receptacle without a nipple. Enter your desired liquid levels and the calculator outputs correct part numbers for all three positions.
